TECHNICAL SPECIFICATIONS
|
|
|
Power Rating
|
LF: 1x400W Continuous, 1600W Peak
|
|
|
|
|
HF: 1x200W Continuous, 800W Peak
|
|
|
Nominal impedance
|
LF: 8 ohms
|
|
|
|
|
HF: 8 ohms
|
|
|
Frequency Response
|
53Hz - 19KHz ± 3 dB
|
|
Sensitivity(1W/1M)
|
LF: 103 dB / HF:101 dB
|
|
MAX SPL
|
LF: 103dB continuous
|
|
|
|
|
HF: 101 dB continuous
|
|
|
High-freq. disp. (H°xV°Ў)
|
80°x120°
|
|
Drivers
|
LF: 1 x 12" (Neodymium Driver)
|
|
|
|
|
HF: x 3" (Neodymium Driver)
|
|
|

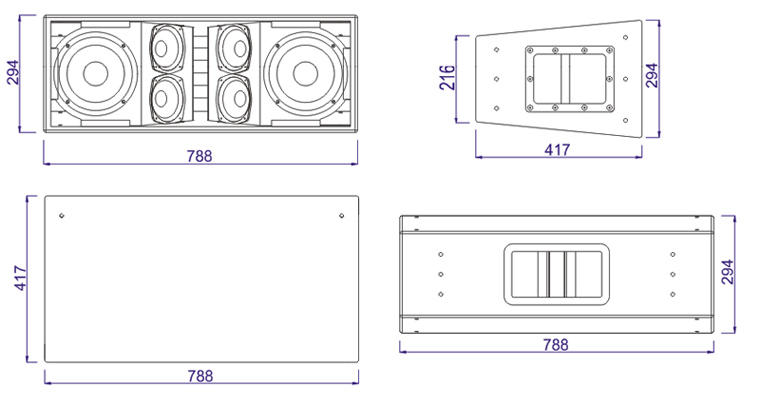

Dimension(HxWxD)
|
420 mm x760 mm x 470mm
|
|
Net weight
|
25kg
|
